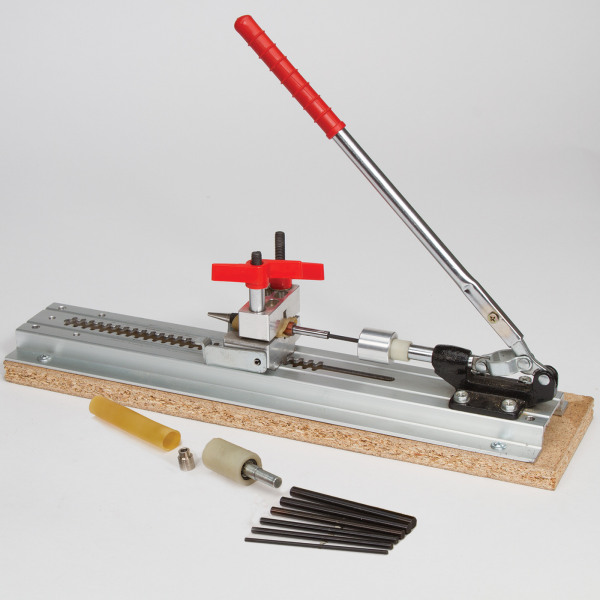

Pen assembly-disassembly press

Pen press with disassembly function

Assemble and disassemble your pen parts with one versatile, easy-to-use tool. This dual-purpose pen press is designed to handle both assembly and disassembly with precision, control, and reliability — making it an essential addition to any pen turner’s setup.

With over 250 lbs. of pressing force and a thoughtful, user-friendly design, this tool helps you build pens accurately and take them apart when needed without damaging your components.

What is included with this press?

This complete system includes:

• Press assembly with adjustable base and handle
• Six disassembly rods for various tube sizes
• Spring-loaded stopper
• 6" of soft grip tubing for parts protection
• 7 mm mechanism bushing for safe disassembly

What can I use this tool for?

This tool functions as both a traditional pen press for assembling pen components and a disassembly press for safely taking pens apart. It’s ideal for pen makers who want one reliable tool that covers the full process — from assembly to repair or correction.

How does the assembly function work?

The press provides over 250 lbs. of pressure to firmly and accurately press pen parts together. The spring-loaded ram acts as a third hand, helping you position parts quickly and easily. The smooth sled mechanism allows you to slide the stop into position instantly. A locking lever secures the rod firmly in place along the threads. This design ensures consistent alignment and reduces the risk of damaging parts during assembly.

How does the disassembly function work?

By removing the plastic stop component, the press quickly converts into a disassembly tool. The ram design pushes parts out of the pen tube with controlled force. Six disassembly rods accommodate nearly all tube diameters and component styles, including tips and clips. The dedicated 7 mm bushing allows safe disassembly of standard 7 mm pen mechanisms. Soft grip tubing and the V-profile clamp help protect finished parts from scratches or dents. Once you're done, simply reinstall the stop component to switch back to assembly mode.

Why is a disassembly feature important?

Even experienced turners occasionally need to fix alignment issues, replace damaged components, or salvage parts from a completed pen. This tool gives you a safe, controlled way to do that — something a standard press cannot offer.

Is this easy to use?

Yes — the design focuses on quick setup and smooth operation. The spring-loaded ram, sliding stop, and locking system all work together to simplify both assembly and disassembly.

Price per press in Canadian dollars.
