Slimline PENCIL kit gold

Slimline pencil kit – 0.7 mm lead

Create a sleek and reliable writing instrument with this Slimline pencil kit .

Lead size: 0.7 mm (included)
Tools required (sold separately): drill 7 mm, bushing 1A, pen mill shaft 7 mm, mandrel A/7 mm
Matching Slimline pen available

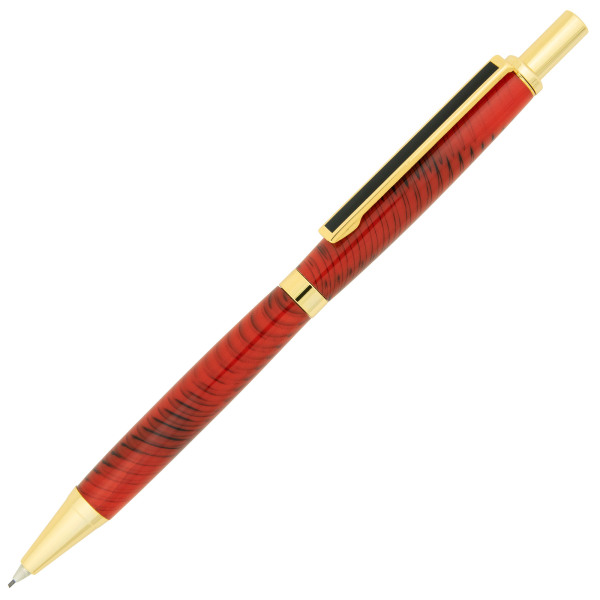

Shown here with a Poly resin pen blank “Cardinal” (blank not included – see “Related Products” tab). This is a woodworking turning project that requires turning, finishing and assembly with woodworking equipment. You will not receive a finished item.

Slimline pencil troubleshooting checklist

(Full guide available for download from the Documents tab)

Assembly tips

☐ Align barrels perfectly straight before pressing into the centerband

☐ Do not force the mechanism through the centerband — realign if it catches

☐ Ensure mechanism front seats fully into the silver insert in the lower barrel

Lead issues

☐ If lead pushes back in, remove broken piece and click to advance new lead

☐ Use the small wire in the bottom of the eraser cup to clear jammed lead from the tip

Eraser & refill access

☐ Pull off the button cap to access the eraser

☐ Pull off the metal eraser cup to access spare leads inside
